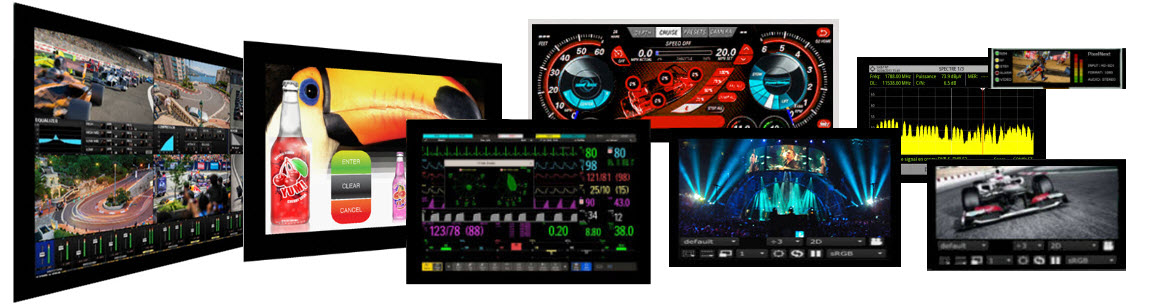

Industrial EMBEDDED HDMI DISPLAYS

embedded_industrial_displays

INDUSTRIAL GLASS with superior viewing angle IPS, AHVA, MVA variant TFT panels. Added to this are Sunlight Readable, Long Life Backlights, HDMI or Industrial MIPI Interfaces, Wide Operating Temperatures and USB HID PCT Touch. This represents the state of the art for technology and design benefits for your next project! We couple this with "INDUSTRIAL BY DESIGN" architecture for extended form factor support!




nl192210bc_hdmi_catalog

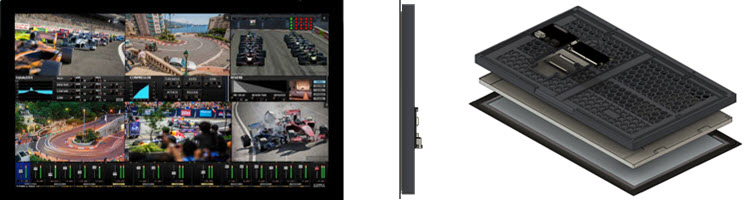

15.6" 1920x1080 HD 1080P, 1500 cd/m2 PCT USB Touch -30C to 850C      nl192108bc_dmi_display_catalog
 Outline Size(mm)  385.00x236.00x34.00
 Active Area (mm)  344.16 x193.59
 Resolution  1920x1080
 Brightness (cd/m2)  1500
 LED Lifetime (HRS)  50,000
 Display Mode  AHVA Normally Black
 Viewing Angle (degrees)  88,88,88,88
 TFT Interface  HDMI
 Touch  PCT USB HID
 Operating (C)  -30 to 85
 Operating (V)  5.0

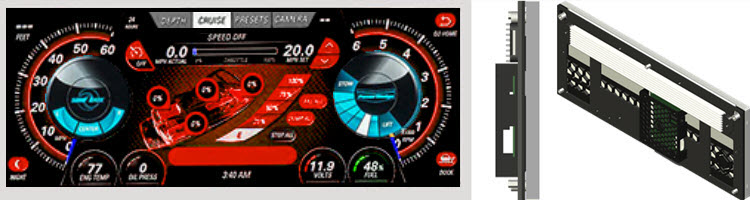

12.3" 1920x720 HD IPS SUNLIGHT READABLE 1000 cd/m2 Operating Temp -30 to 85C, PCT USB Touch
 Outline Size(mm)  301.00x124.00x30.2
 Active Area (mm)  292.03x109.54
 Resolution  1920x720
 Brightness (cd/m2)  1000
 LED Lifetime (HRS)  15,000
 Display Mode  IPS Normally Black
 Viewing Angle (degrees)  85,85,85,85
 TFT Interface  HDMI
 Touch  PCT USB HID
 Operating (C)  -30 to 85
 Operating (V)  5.0




auo_g121ean01_3_hdmi_display

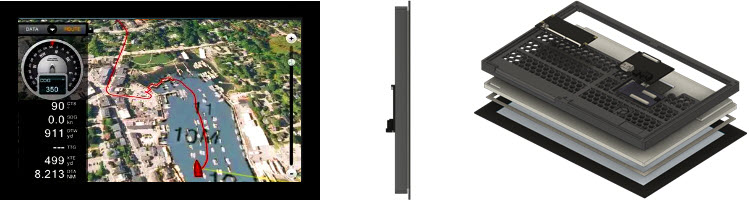

12.1" WXGA 1200x800 AHVA SUNLIGHT READABLE 1500 cd/m2 -30 to 85C PCT USB Touch auo_g121ean01_3_catalog
 Outline Size(mm)  301.00x203.00x18.00
 Active Area (mm)  261.12x163.20
 Resolution  1280x800
 Brightness (cd/m2)  1500
 LED Lifetime (HRS)  50,000
 Display Mode  AHVA Normally Black
 Viewing Angle (degrees)  89,89,89,89
 TFT Interface  HDMI
 Touch  PCT USB HID
 Operating (C)  -30 to 85
 Operating (V)  5.0




auo

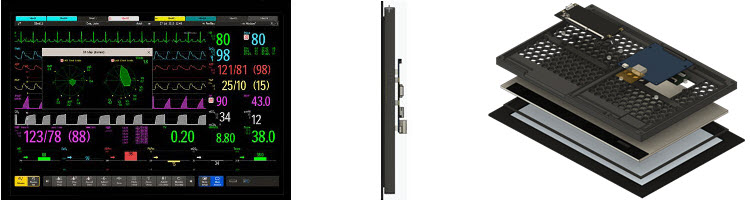

10.1" 1920x1200 HD WUXGA 800 cd/m2 -10 to 60C PCT USB Touch auo_g101uan02_0_hdmi_display
 Outline Size(mm)  254.26.00x172.90x15.55
 Active Area (mm)  216.576 x135.36
 Resolution  1920x1200
 Brightness (cd/m2)  800
 LED Lifetime (HRS)  15,000
 Display Mode  AHVA Normally Blac
 Viewing Angle (degrees)  85,85,85,
 TFT Interface  HDMI
 Touch  PCT USB HID
 Operating (C)  -10 to 60
 Operating (V)  5.0





auo_g080uan01.0_8_inch_display

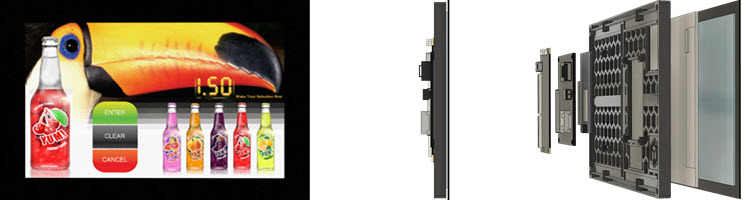

8" 1280x720 HD 800 cd/m2 PCT USB Touch auo_g080uan01_0_hdmi_display
 Outline Size(mm)  196.70x126.80x12.56
 Active Area (mm)  176.64x99.36
 Resolution  1280x720
 Brightness (cd/m2)  800
 LED Lifetime (HRS)  30,000
 Display Mode  AHVA Normally Black
 Viewing Angle (degrees)  88,88,88,88
 TFT Interface  HDMI
 Touch  PCT USB HID
 Operating (C)  -30 to 85
 Operating (V)  5.0



tianma_tm070jdh30_display

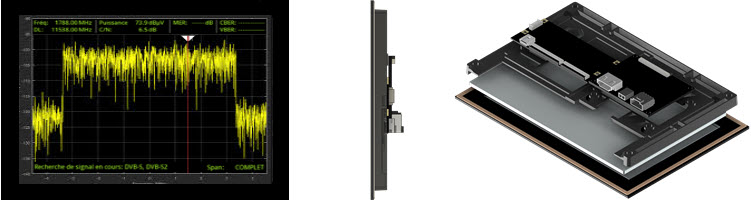

7" 1280x800 WXGA 400 cd/m2 PCT USB Touch -20C to 70C tianma_tm070jdhg30_hdmi_display
 Outline Size(mm)  180.44x125.86x17.70
 Active Area (mm)  149.76x93.60
 Resolution  1280x800
 Brightness (cd/m2)  400
 LED Lifetime (HRS)  30,000
 Display Mode  SFT Normally Black
 Viewing Angle (degrees)  88,88,88,88
 TFT Interface  HDMI
 Touch  PCT USB HID
 Operating (C)  -20 to 70
 Operating (V)  5.0

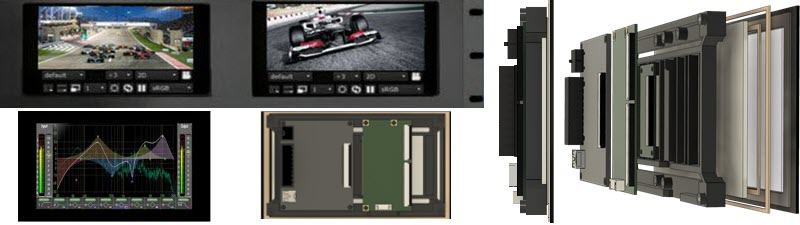

5" 1280x720 HD 720P AHVA 600 cd/m2 PCT USB Touch -10C to 60C

 Outline Size(mm)   135.6x77.0x12.5
 Active Area (mm)  110.4x62.1
 Resolution  1280x720
 Brightness (cd/m2)  600
 LED Lifetime (HRS)  10,000
 Display Mode  AHVA Normally Blacke
 Viewing Angle (degrees)  80,80,80,80
 TFT Interface  Embedded MIPI
 Touch  PCT USB HID
 Operating (C)  -10 to 60
 Operating (V)  5.0

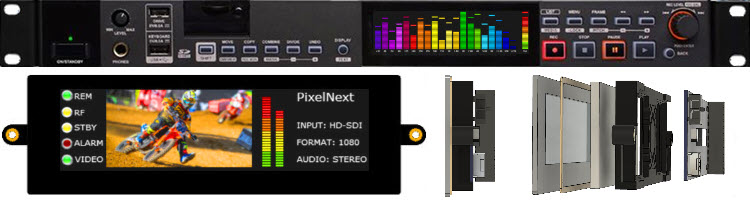

3.9" 480x128 1U SUNLIGHT READABLE 1000 cd/m2 -30 to 80C, 50K Hour Backlight, PCT USB Touch


 Outline Size(mm)  134.02x40.49x18.9
 Active Area (mm)  95.04.x25.34
 Resolution  480x128
 Brightness (cd/m2)  1000
 LED Lifetime (HRS)  50,000
 Display Mode  Normally White
 Viewing Angle (degrees)  65,65,65,50
 TFT Interface  Embedded MIPI
 Touch  PCT USB HID
 Operating (C)  -30 to 80
 Operating (V)  5.0





Our Valued Suppliers

Focused on the Industrial Embedded HMI market:


TFT Display Panels:

auo optronics

Technologies developed by AUO to deliver the best image quality include ultra high resolution, wide color gamut, high dynamic range (HDR), ultra high refresh rate, and ultra high brightness. Video solutions include displays panels for mobile solutions, general displays, car displays, audio-video displays and wearable devices.

tianma display

Tianma Microelectronics Co. Ltd. has 30 years of GLOBAL market display history. They support applications including automotive, instrumentation, industrial, medical, avionic, marine, KIOSK and POS. Tianma is a leader of small to medium size displays in technology, quality and long-term support for customers around the world.

JDI display

JDI develops, designs and manufactures displays for the industrial embedded global market. They create interactive displays that go beyond the expected, elevate everyday lives, and move people's hearts by developing products that respond to the increasing market needs.

Display Modules:

pixelnext

PIXELNEXT focuses on bringing world class TFT Displays, Touch Screens and the Electronics that Drives them to the industrial display industry. We target Instrument Grade or Industrial Grade displays using our "Industrial by Design" core principles and industrially adopted interfaces such as HDMI, MIPI and USB HID. We are dedicated to being your PARTNER, not your vendor.



INDUSTRIAL GLASS with superior viewing angle IPS, AHVA, MVA variant TFT panels. Added to this are Sunlight Readable,Long Life Backlights, HDMI or Industrial MIPI Interfaces, Wide Operating Temperatures and USB HID PCT Touch. This represents the state of the art for technology and design benefits for your next project! We couple this with "INDUSTRIAL BY DESIGN" architecture for extended form factor support!
