embedded displays

15.6" HD Sunlight Readable Industrial EMBEDDED HDMI TOUCH DISPLAYS

INDUSTRIAL GLASS with superior viewing angle IPS, AHVA, MVA variant TFT panels. Added to this are Sunlight Readable, Long Life Backlights, HDMI or Industrial MIPI Interfaces, Wide Operating Temperatures and USB HID PCT Touch. This represents the state of the art for technology and design benefits for your next project! We couple this with "INDUSTRIAL BY DESIGN" architecture for extended form factor support!

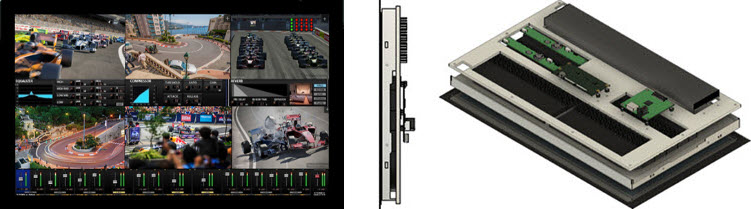

NL192108BC

1500 cd/m2 SUNLIGHT READABLE 1920 x 1080P AHVA HDMI PCT Touch

A TRUE Sunlight Readable 1500 cd/m2 INDUSTRIAL Extended Temperature (-30 to 85C) HD Ultra Wide Viewing Angle, PCT embedded display.

Outline Size(mm)	383.80x225.90x34.00*
Active Area (mm)	344.16 x193.59
Resolution	1920x1080
Brightness (cd/m2)	1500 (1380*)
LED Lifetime (HRS)	20,000
Display Mode	AHVA Normally Black
Viewing Angle (degrees)	88,88,88,88
TFT Interface	HDMI
Touch	PCT USB HID
Operating (C)	-30 to 85 (-20 to 70*)
Operating (V)	5.0

82-076-00 HDMI Display with PCT

82-077-00 HDMI Display without PCT

auo_g156han02.1

1920 x 1080 1080P AHVA HDMI 500 cd/m2 PCT Touch

An HDMI Extended Temperature (-20 to 70C) FULL HD (FD) USB Ultra Wide Viewing Angle,
EXTENDED Backlight Life Glass PCT embedded display.

Outline Size(mm)	383.80x225.90x34.00
Active Area (mm)	344.16 x193.59
Resolution	1920x1080
Brightness (cd/m2)	500 (460*)
LED Lifetime (HRS)	50,000
Display Mode	AHVA Normally Black
Viewing Angle (degrees)	89,89,89,89
TFT Interface	HDMI
Touch	PCT USB HID
Operating (C)	-20 to 70
Operating (V)	5.0

82-028-00 HDMI Display with PCT

82-029-00 HDMI Display without PCT
