10.1" HD Sunlight Readable Industrial EMBEDDED HDMI TOUCH DISPLAYS

INDUSTRIAL GLASS with superior viewing angle AHVA variant TFT panels. Added to this are Sunlight Readable, Long Life Backlights, HDMI or Industrial MIPI Interfaces, Wide Operating Temperatures and USB HID PCT Touch. This represents the state of the art for technology and design benefits for your next project! We couple this with "INDUSTRIAL BY DESIGN" architecture for extended form factor support!

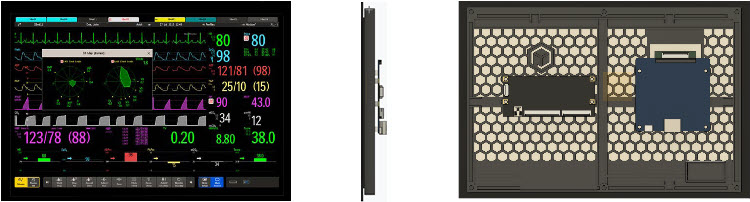

NL192108BC

1920 x 1200 AHVA 800 cd/m2 SUNLIGHT READABLE HDMI PCT Touch

A TRUE High Definition HDINDUSTRIAL Ultra Wide Viewing Angle, PCT embedded display.

Outline Size(mm)	254.26.00x172.90x15.55*
Active Area (mm)	216.576 x135.36
Resolution	1920x1200
Brightness (cd/m2)	800 (730*)
LED Lifetime (HRS)	50,000
Display Mode	AHVA Normally Black
Viewing Angle (degrees)	85,85,85,85
TFT Interface	HDMI
Touch	PCT USB HID
Operating (C)	-10 to 60
Operating (V)	5.0

82-065-00 HDMI Display with PCT

82-021-00 HDMI Display without PCT

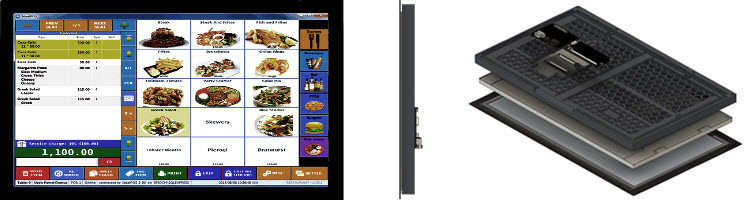

auo_g156han02.1

1280 x 800 MVA HDMI 1000 cd/m2 PCT Touch

An HDMI Extended Temperature (-20 to 60C) Ultra Wide Viewing Angle,
EXTENDED Backlight Life Glass PCT embedded display.

Outline Size(mm)	254.26.00x172.90x15.55*
Active Area (mm)	216.96 x135.60
Resolution	1280x800
Brightness (cd/m2)	1000 (920*)
LED Lifetime (HRS)	50,000
Display Mode	MVA Normally Black
Viewing Angle (degrees)	85,85,85,85
TFT Interface	HDMI
Touch	PCT USB HID
Operating (C)	-20 to 60
Operating (V)	5.0

82-085-00 HDMI Display with PCT

82-043-00 HDMI Display without PCT
